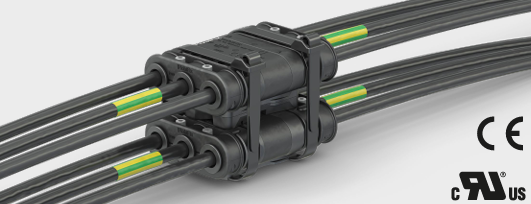

Flat primary circuit connectors | Welding Automation

Primary circuit Quick Disconnect for resistance welding applications on robots, dresspacks, welding guns, weld timers, and automatic tool-changers in the automotive industry.

Assembly and Disassembly by Hand without Tools

Quick disconnect solutions for minimized integration time, downtime, installation, and maintenance costs.

• Unequalled contact reliability thanks to the Stäubli MULTILAM technology
• Fast integration and easy maintenance
• Extremely compact design with superior performance
• First mate/last break PE-contact for additional safety
• High current-carrying capacity, polarity protection
• Ideal in combination with single-core conductors
• A solution for each dresspack segment from J1 to J6, even with mixed cross-sections
• Easy replacement of the upper and lower arm dress package helps reduce downtime and minimize production loss.



Applications and Benefits

RobiFix primary circuit connectors for spot-welding applications are used in welding robots and welding guns, dresspacks, frequency converters, and tool changers in automotive body construction.

Quick couplings help reduce downtime during production and maintenance costs.

• Unparalleled contact reliability thanks to MULTILAM advanced contact technology
• Very light and compact design • Easy exchange of cables by hand
• Fast integration and easy maintenance
• High current-carrying capacity with reverse polarity protection
• Solutions for all primary circuit supply segments, even with different conductor cross-sections

Download Product Sheet
