Steel flanks Hook rotatable in 90° steps Variable clamping position until to 3 mm. Customized hooks, locator pins (min Ø20 mm. ÷ max Ø40 mm., max height 5 times the Ø of...

Steel flanks Customized hooks, locator pins (Ømin 20 mm. ÷ Ømax 40 mm., max height 5 times the Ø of the pin) and thickness plate 2 mounting areas (front and rear) Pneumatic...

Aluminium flanks Horizontal encumbrance Customized hooks, locator pins (Ømin 18 mm. ÷ Ømax 30mm., max height 4 times the Ø of the pin) and thickness plate 3 mounting areas (lateral and bottom)...

#image_title Steel flanks Compact design Customized hooks, locator pins (Ømin 18 mm. ÷ Ømax 40 mm., max height 4 times the Ø of the pin) and thickness plate 2 mounting areas...

Aluminium flanks Light weight version and compact design Customized hooks, locator pins (Ømin 16 mm. ÷ Ømax 32 mm.,max height 3,5 times the Ø of the pin) and thickness plate 2 mounting...

Backlash free centering of the part Variable clamping position until to 3 mm. Steel flanks Customized hooks, locator pins and top plates 2 mounting areas (front and rear) Pneumatic cylinder...

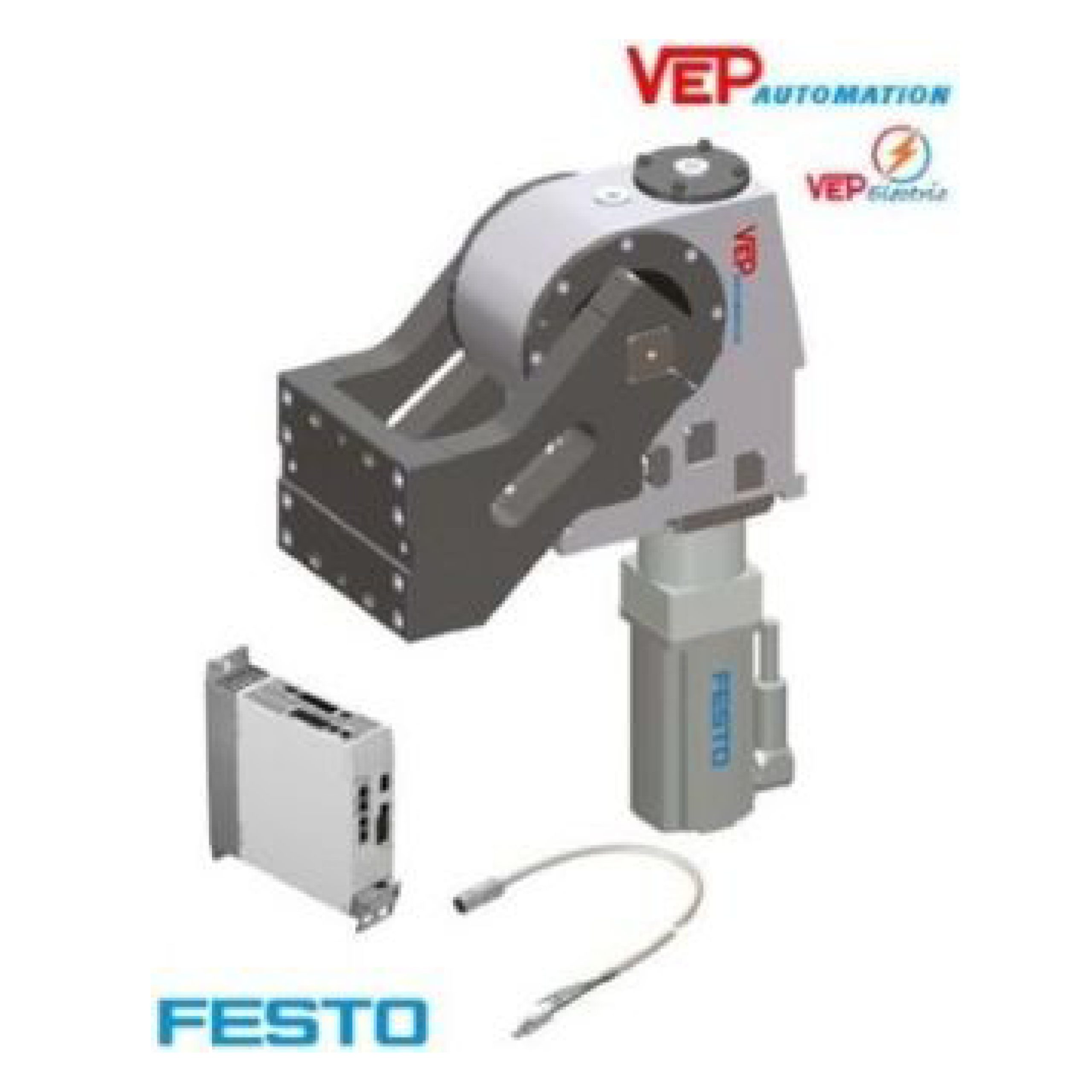

#image_title Electric motor: 400V voltage with encoder -SEW / -Lenze / - AMK (according to OEM specifications). Worm gear. Variable opening angle: 0° to 135°. Time swivel movement 0° to...

Electric motor: 400V voltage with encoder -SEW / -Lenze / - AMK (according to OEM specifications). Worm gear. Variable opening angle: 0° to 135°. Time swivel movement 0° to 135°...

Aluminum flanks Steel arms External arms hard stop 2 mounting areas (front and back) Pneumatic cylinder bore : 80 mm. 2 adjustable end stroke pneumatic cushioning 4 feeding ports G1/4"...

Opening angle easily adjustable (RCM.2) Version with fixed opening angle (RC.2) Hydraulic motion control integrated into pneumatic cylinder Aluminum flanks Toggle action mechanism Steel arms External arms stop 2 mounting...
