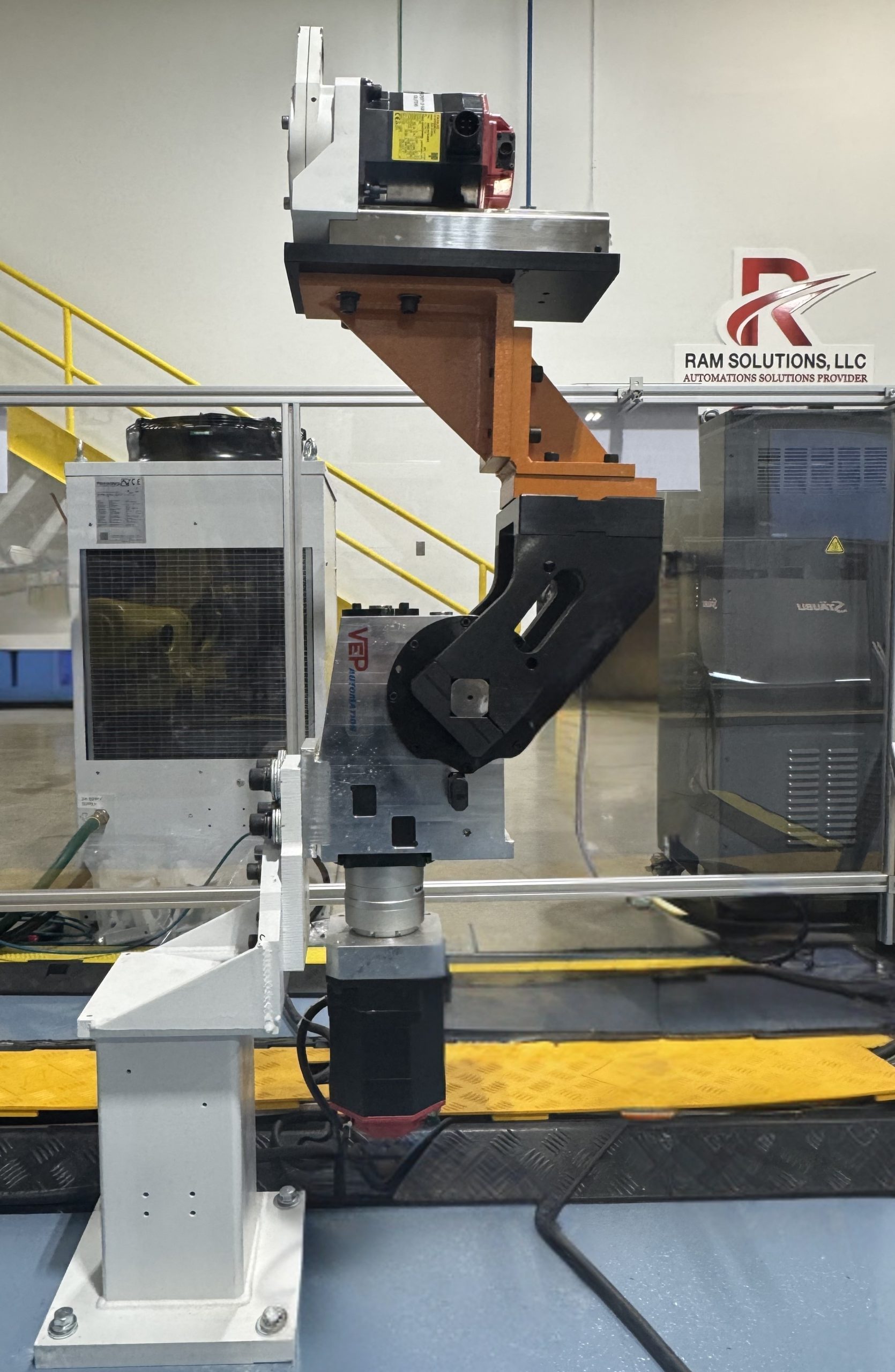

RAM Servo Pivot

  • Electric motor: 400V voltage with encoder -SEW / -Lenze / – AMK (according to OEM specifications).
  • Worm gear.
  • Variable opening angle: 0° to 135°.
  • Time swivel movement 0° to 135° → 4sec.
  • Max. load torque: 500 Nm.
  • Holding torque: 2000 Nm.
  • Brake integrated in the electric motor (accessory).
  • Swivel movement with programmable intermediate stops.
  • Interchangeable with pneumatic swivel unit.
  • Weight : 61 Kg.
