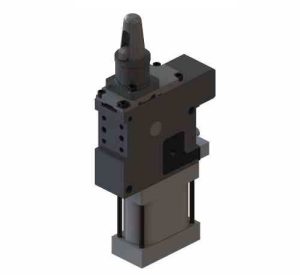

Backlash free centering of the part Variable clamping position until to 3 mm. Steel flanks Customized hooks, locator pins and top plates 2 mounting areas (front and rear) Pneumatic cylinder bore : 63 mm. 4 feeding ports G1/4” Inductive proximity switch : 3 LEDS, connection M12x1 Flowing weld splashes protection Max clamping force (5 bar) : 220 / 280 daN Holding moment : 330 daN Working pressure : 5 - 8 bar Weight : ~ 7,5 Kg.
