C SERIES
HIGH-PERFORMANCE SUCTION CUPS

High-Performance Suction Cups

General Information

The C Series high-performance suction cup range has been designed to meet the requirements of the automotive sector.

The improved characteristics of the C Series range optimize production tools in all branches of activity.

Advantages

• Extreme resistance to slipping and acceleration.

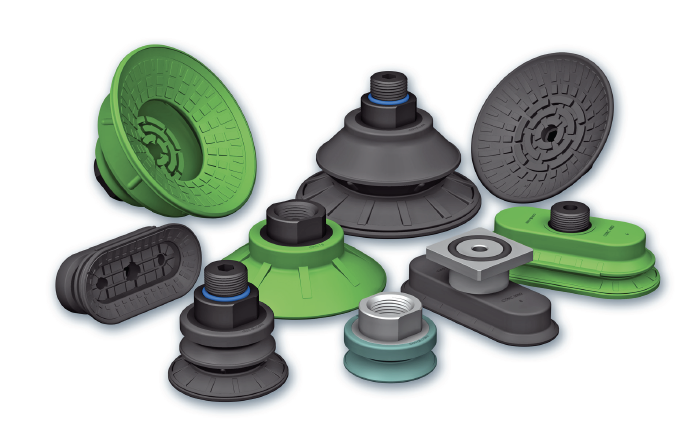

• A full range of shapes and sizes to meet every requirement.
• 2 suction cup materials available depending on the model (Nitrile or Siton®).
• Non-slip cleats ensure optimum positioning of oily metal sheets.
• Ideal for automated applications.
• Rigid central stopper with integrated cleats allows gripping of thin sheet metal without any deformation.
• Lightweight polyamide fittings allow for better integration on end-of-arm tooling.
• Airtight sealing lips.
• Airtight fittings using:
  • – O-rings on G3/8″ male cylindrical suction cups and
  • 32 square suction cups
  • – Sealing ring on all oblong 3/8″ male suction cups.
• Visual wear indicator.
• Double tightening: external with 22 mm wrench or internal with 6 or 8 mm hex key.

Application Fields

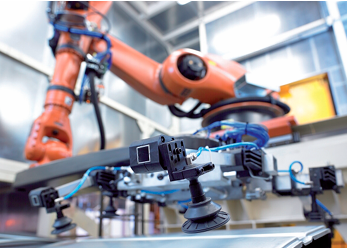

The COVAL C Series vacuum cups have been specially designed for high-speed robot applications due to their high resistance to slipping and acceleration, as well as their reduced weight.

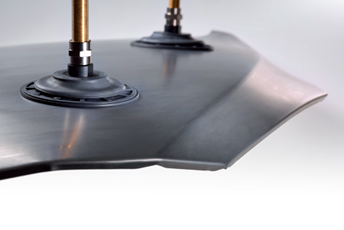

The C Series vacuum cups are dedicated to handling sheet metal, glass, and plastics in operations such as Stamping, BIW, Glass, and Assembly.
