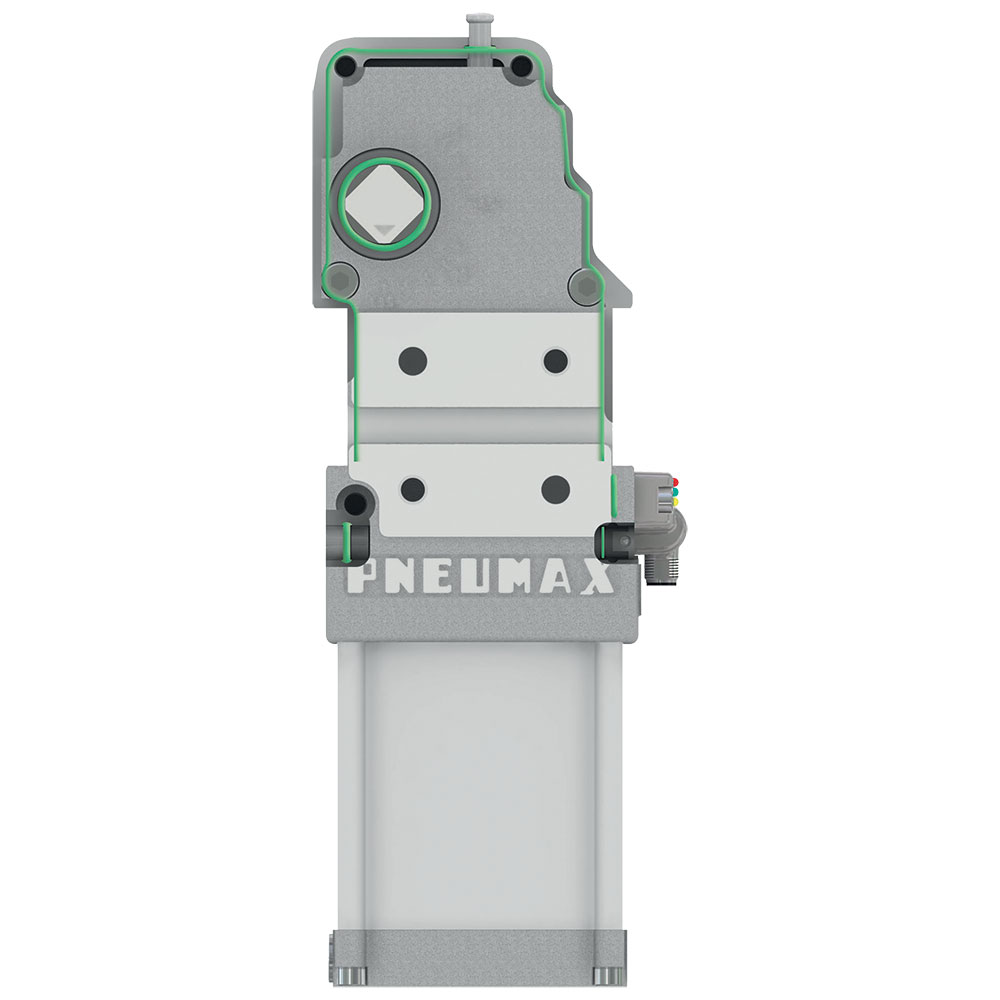

CS/HES Series Pneumatic Clamps

The CS/HES Series are hybrid clamps that combine the robust clamping force of the CS Series with the swing-and-clamp functionality of the HES Series. They are designed for applications requiring strong, reliable clamping in combination with swing motion for easy part access.

Key Points

• Pneumatic swing-and-clamp action
• High clamping force for heavier or larger workpieces
• Smooth swing motion clears the work area for loading/unloading
• Compact enough for integration into automated fixtures
• Optional position sensing for open/closed feedback

Typical Uses

High-cycle production where secure clamping and part access are needed

Machining and welding fixtures for medium-to-large parts

Automated assembly and inspection cells
