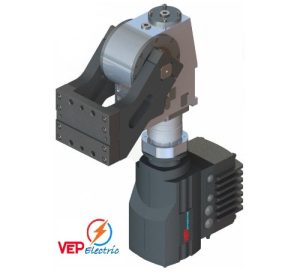

Electric motor: 400V voltage with encoder -SEW / -Lenze / - AMK (according to OEM specifications). Worm gear. Variable opening angle: 0° to 135°. Time swivel movement 0° to 135° → 4sec. Max. load torque: 500 Nm. Holding torque: 2000 Nm. Brake integrated in the electric motor (accessory). Swivel movement with programmable intermediate stops. Interchangeable with pneumatic swivel unit. Weight : 61 Kg.
